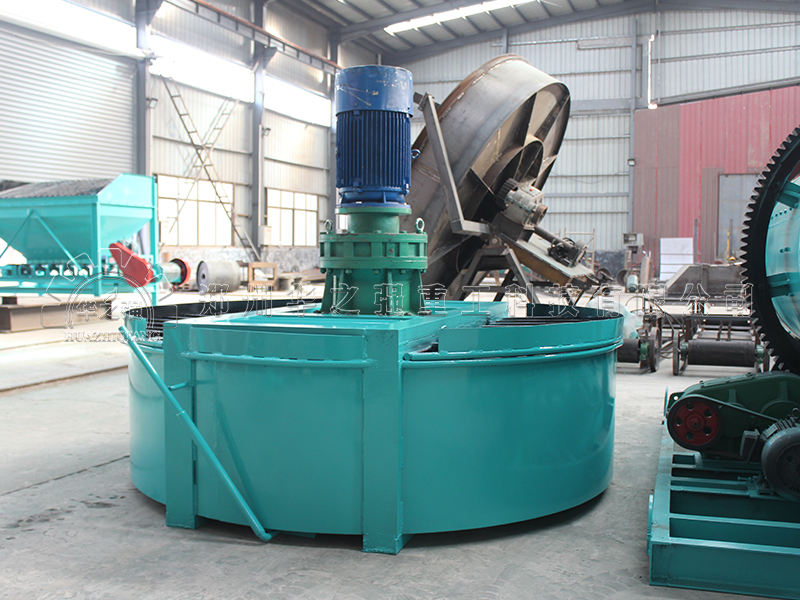

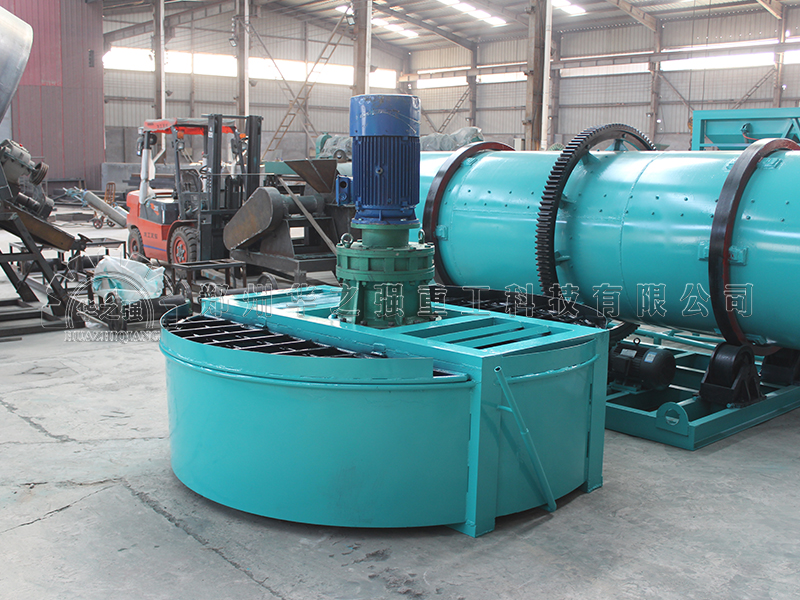

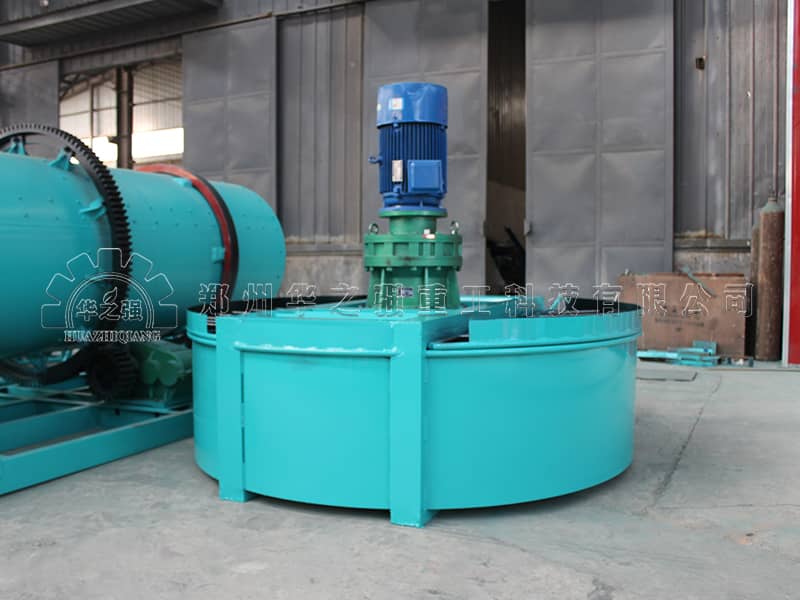

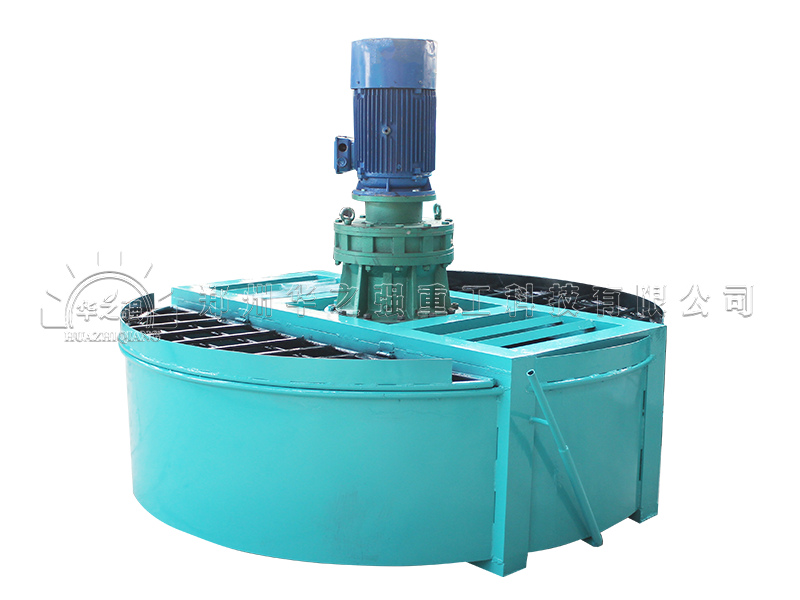

立式圓盤攪拌機
用途及特點：
本機是一種新型的立式圓盤攪拌機，它由攪拌盤、出料口、攪拌臂、機架、齒輪箱包以及傳動機構組成，其特征是減速機輸出軸端帶動攪拌主軸，使其運轉,攪拌軸上有固定的攪拌齒,攪拌軸帶動攪齒使物料充分?jǐn)嚢杌旌?。該攪拌機壽命長、節能省電、體積小、攪拌速度快、可連續不斷工作。該機主要用于原料的混合。盤內可選用內襯聚丙烯板或不銹鋼板，不易粘料，耐磨損。并且采用擺線針輪減速機，使其具有結構緊湊、操作方便、攪拌均勻、卸料輸送方便等特點。
Vertical Disc Mixer
Use and Features:
This machine is a new vertical disc mixer, which consists of mixing plate, discharge port, mixing arm, rack, gearbox and transmission mechanism. The characteristic of the machine is that the output shaft end of the reducer drives the stirring main shaft to operate, and the stirring shaft has fixed stirring teeth, and the stirring shaft drives the stirring teeth to mixing the material sufficiently. The mixer has long service life, energy saving, small volume, fast stirring speed and continuous working. The machine is mainly used for the mixing of raw materials. The inside can be lined with polypropylene plate or stainless steel plate. It is not easy to stick material and wear resistance. The cycloid pinwheel reducer make the machine has the characteristics of compact structure, convenient operation, uniform mixing, and convenient discharge and transportation.
結構簡述
整機可分為三大部分：
1.機架部分：機器工作體安裝固定在機架上，該機的機架均采用優碳鋼板、槽鋼焊接而成，并通過了嚴格的產品工藝要求，已達到本機所使用的目的；
2.傳動連接部分：本機采用擺線針輪減速機帶動主軸旋轉工作，其主機工作部分均采用尼龍柱銷是傳動連接器相齒和傳遞驅動，方便組裝與維修；
3.攪拌工作部分：由傳動輪通過柱銷聯軸器傳至主軸。將物料在攪拌室內均勻的翻轉，使物料能得到的混合，從而大大的減少了物料的殘留量。
